DAS〈B类〉尺寸数据

表面光洁度要求：接触表面:Ra≤0.3um ; 沟槽底面:Ra≤1.8um ; 构槽侧面:Ra≤3um

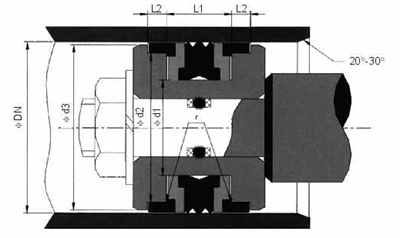

内孔直径 沟槽尺寸 B+S订货型号 参考型号
DN H9 d1 h9 L1+0.2 d2 h9 d3 h11 L2+0.1 r max
20.00 11.00 13.50 17.00 19.00 2.10 0.40 PCB 0N0200 DAS 20 11
22.00 13.00 13.50

19.00

 21.00 2.10 0.40 PCB 0N0220 DAS 22 13
25.00 15.00 12.00 21.00 23.00 4.00 0.40 PCB 0D0250 DAS 25 15/1
25.00 15.00 12.50 22.00 24.00 4.00 0.40 PCB 0D0250 DAS 25 15/2
25.00 15.00 16.40 21.45 23.50 6.35 0.40 PCB 1N0250 DAS 25 15
25.00 16.00 13.50 22.00 24.00 2.10 0.40 PCB 2N0250 DAS 25 16
28.00 19.00 13.50 25.00 27.00 2.10 0.40 PCB 0N0280 DAS 28 19
30.00 21.00 13.50 27.00 29.00 2.10 0.40 PCB 0A0300 DAS 30 21
32.00 22.00 15.50 28.00 31.00 2.60 0.40 PCB 0B0320 DAS 32 22/1
32.00 22.00 16.40 28.50 30.50 6.35 0.40 PCB 1A0320 DAS 32 22
35.00 25.00 15.50 31.00 34.00 2.60 0.40 PCB 0B0350 DAS 35 25/1
35.00 25.00 16.40 31.40 33.50 6.35 0.40 PCB 1A0350 DAS 35 25
40.00 24.00 18.40 35.40 38.50 6.35 0.40 PCB 0A0400 DAS 40 24
40.00 26.00 15.50 36.00 39.00 2.60 0.40 PCB 1A0400 DAS 40 26
40.00 30.00 12.50 36.00 38.00 4.00 0.40 PCB 2D0400 DAS 40 30/1
40.00 30.00 12.50 37.00 39.00 4.00 0.40 PCB 2E0400 DAS 40 30/2
40.00 30.00 16.40 35.40 38.50 6.35 0.40 PCB 3A0400 DAS 40 30
42.00 28.00 15.50 38.00 41.00 2.60 0.40 PCB 0N0420 DAS 42 28
45.00 29.00 18.40 40.40 43.50 6.35 0.40 PCB 0N0450 DAS 45 29
45.00 31.00 15.50 41.00 44.00 2.60 0.40 PCB 1A0450 DAS 45 31
45.00 35.00 16.40 40.40 4350 6.35 0.40 PCB 2N0450 DAS 45 35
50.00 34.00 18.40 45.40 48.50 6.35 0.40 PCB 1A0500 DAS 50 34
50.00 34.00 20.50 46.00 49.00 3.10 0.40 PCB 0B0500 DAS 50 34/1
55.00 39.00 20.50 50.36 53.50 6.35 0.40 PCB 1A0550 DAS 55 39
55.00 39.00 18.40 51.00 54.00 3.10 0.40 PCB 0B0550 DAS 55 39/1
56.00 40.00 20.50 52.00 55.00 3.10 0.40 PCB 0A0560 DAS 56 40
60.00 44.00 18.40 55.40 58.50 6.35 0.40 PCB 1A0600 DAS 60 44
60.00 44.00 20.50 56.00 59.50 3.10 0.40 PCB 0B0600 DAS 60 44/1
63.00 47.00 18.40 58.40 61.50 6.35 0.40 PCB 1A0630 DAS 63 47
63.00 47.00 19.40 58.40 61.50 6.35 0.40 PCB 2C0630 DAS 63 47/2
63.00 47.00 20.50 59.00 62.00 3.10 0.40 PCB 0B0630 DAS 63 47/1
65.00 49.00 20.50 61.00 64.00 3.10 0.40 PCB 0N0650 DAS 65 49
65.00 50.00 18.40 60.40 63.50 6.35 0.40 PCB 1A0650 DAS 65 50
70.00 50.00 22.40 64.20 68.30 6.35 0.40 PCB 0A0700 DAS 70 50
70.00 54.00 20.50 66.00 69.00 3.10 0.40 PCB 0N0700 DAS 70 54
75.00 55.00 22.40 69.20 73.30 6.35 0.40 PCB 0A0750 DAS 75 55

内孔直径 沟槽尺寸 B+S订货型号 参考型号
DN H9 d1 h9 L1+0.2 d2 h9 d3 h11 L2+0.1 r max
75.00 59.00 20.50 71.00 74.00 3.10 0.40 PCB 1A0750 DAS 75 59
80.00 60.00 22.40 74.15 78.30 6.35 0.40 PCB 0A0800 DAS 80 60
80.00 62.00 22.50 76.00 79.00 3.60 0.40 PCB 1A0800 DAS 80 62
85.00 65.00 22.40 79.15 83.30 6.35 0.40 PCB 0A0850 DAS 85 65
90.00 70.00 22.40 84.15 88.30 6.35 0.40 PCB 0A0900 DAS 90 70
90.00 72.00 22.50 86.00 89.00 3.60 0.40 PCB 1A0900 DAS 90 72
95.00 75.00 22.40 89.15 93.03 6.35 0.40 PCB 0A0950 DAS 95 75
100.00 75.00 22.40 93.15 98.00 6.35 0.40 PCB 0A1000 DAS 100 75
100.00 82.00 22.50 96.00 99.00 3.60 0.40 PCB 1A1000 DAS 100 82
105.00 80.00 22.40 98.10 103.00 6.35 0.40 PCB 0A1050 DAS 105 80
110.00 85.00 22.40 103.10 108.00 6.35 0.80 PCB 0A1100 DAS 110 85
110.00 92.00 22.50 106.00 109.00 3.60 0.80 PCB 1A1100 DAS 110 92
115.00 90.00 22.40 108.10 113.00 6.35 0.80 PCB 0A1150 DAS 115 90
115.00 97.00 22.50 111.00 114.00 3.60 0.80 PCB 1N1150 DAS 115 97
120.00 95.00 22.40 113.10 118.10 6.35 0.80 PCB 0A1200 DAS 120 95
125.00 100.00 25.40 118.10 123.00 6.35 0.80 PCB 0A1250 DAS 125 100
125.00 103.00 26.50 121.00 124.00 5.10 0.80 PCB 1A1250 DAS 125 103
130.00 105.00 25.40 122.60 127.50 9.50 0.80 PCB 1A1300 DAS 130 105
130.00 105.00 25.40 123.10 128.00 6.35 0.80 PCB 0B1300 DAS 130 105/1
135.00 110.00 25.40 127.60 132.50 9.50 0.80 PCB 1A1350 DAS 135 110
135.00 110.00 25.40 128.10 133.00 6.35 0.80 PCB 0B1350 DAS 135 110/1
140.00 115.00 25.40 132.50 137.50 9.50 0.80 PCB 0A1400 DAS 140 115
140.00 115.00 25.40 133.00 138.00 6.35 0.80 PCB 0B1400 DAS 140 115/1
140.00 118.00 26.50 136.00 139.00 5.10 0.80 PCB 2A1400 DAS 140 118
145.00 120.00 25.40 137.60 142.50 9.50 0.80 PCB 1A1450 DAS 145 120
145.00 120.00 25.40 138.30 142.95 6.35 0.80 PCB 0B1450 DAS 145 120/1
150.00 125.00 25.40 142.60 147.50 9.50 0.80 PCB 1A1500 DAS 150 125
150.00 125.00 25.40 143.00 148.00 6.35 0.80 PCB 0B1500 DAS 150 125/1
150.00 128.00 26.50 146.00 149.00 5.10 0.80 PCB 2A1500 DAS 150 128
155.00 130.00 25.40 147.60 152.50 9.50 0.80 PCB 0A1550 DAS 155 130
155.00 130.00 25.40 148.00 153.00 6.35 0.80 PCB 1B1550 DAS 155 130/1
160.00 130.00 25.40 153.00 157.50 6.35 0.80 PCB 0A1600 DAS 160 130
160.00 130.00 25.40 152.60 157.50 9.50 0.80 PCB 3A1600 DAS 160 130/1
160.00 135.00 25.40 152.60 157.50 9.50 0.80 PCB 1A1600 DAS 160 135
160.00 138.00 26.50 156.00 159.00 5.10 0.80 PCB 2A1600 DAS 160 138
165.00 140.00 25.40 157.60 162.50 9.50 0.80 PCB 0A1650 DAS 165 140
170.00 145.00 25.40 161.70 167.10 12.70 0.80 PCB 0A1700 DAS 170 145
170.00 148.00 26.50 166.00 169.00 5.10 0.80 PCB 1A1700 DAS 170 148
175.00 150.00 25.40 166.70 172.10 12.70 0.80 PCB 0A1750 DAS 175 150
180.00 150.00 35.40 172.95 177.87 6.35 0.80 PCB 0A1800 DAS 180 150
180.00 155.00 25.40 171.70 177.10 12.70 0.80 PCB 1A1800 DAS 180 155
185.00 160.00 26.50 176.70 182.10 12.70 0.80 PCB 0A1850 DAS 185 160
190.00 165.00 25.40 181.70 187.00 12.70 0.80 PCB 0A1990 DAS 190 165
195.00 170.00 25.40 186.70 192.00 12.70 0.80 PCB 0A1950 DAS 195 170
200.00 175.00 25.40 191.60 197.00 12.70 0.80 PCB 0A2000 DAS 200 175
210.00 185.00 25.40 201.60 207.00 12.70 0.80 PCB 0A2100 DAS 210 185
220.00 190.00 35.40 212.70 217.90 6.35 0.80 PCB 0A2200 DAS 220 190
220.00 195.00 25.40 211.60 217.00 12.70 0.80 PCB 1A2200 DAS 220 195
230.00 205.00 25.40 221.60 227.00 12.70 0.80 PCB 0A2300 DAS 230 205
240.00 215.00 25.40 231.60 237.00 12.70 0.80 PCB 0A2400 DAS 240 215
250.00 220.00 35.40 242.90 247.85 6.35 0.80 PCB 0A2500 DAS 250 220
250.00 225.00 25.40 241.60 247.00 12.70 0.80 PCB 1A2300 DAS 250 225
